Weight | 135 kg |
---|---|
Dimensions | 420 × 595 × 740 mm |
Brand | |
Style | |
Type | Freestanding |
Fuel | Wood Burner |
Output | |
Flue Size | 150 mm |
Colour | Black |
NORDFLAM IBERIA
R24,604
- Comes with complete with primary, secondary & air wash system
- Unit comes with cast iron liners for extra durability
- clean lined style with top or rear outlet

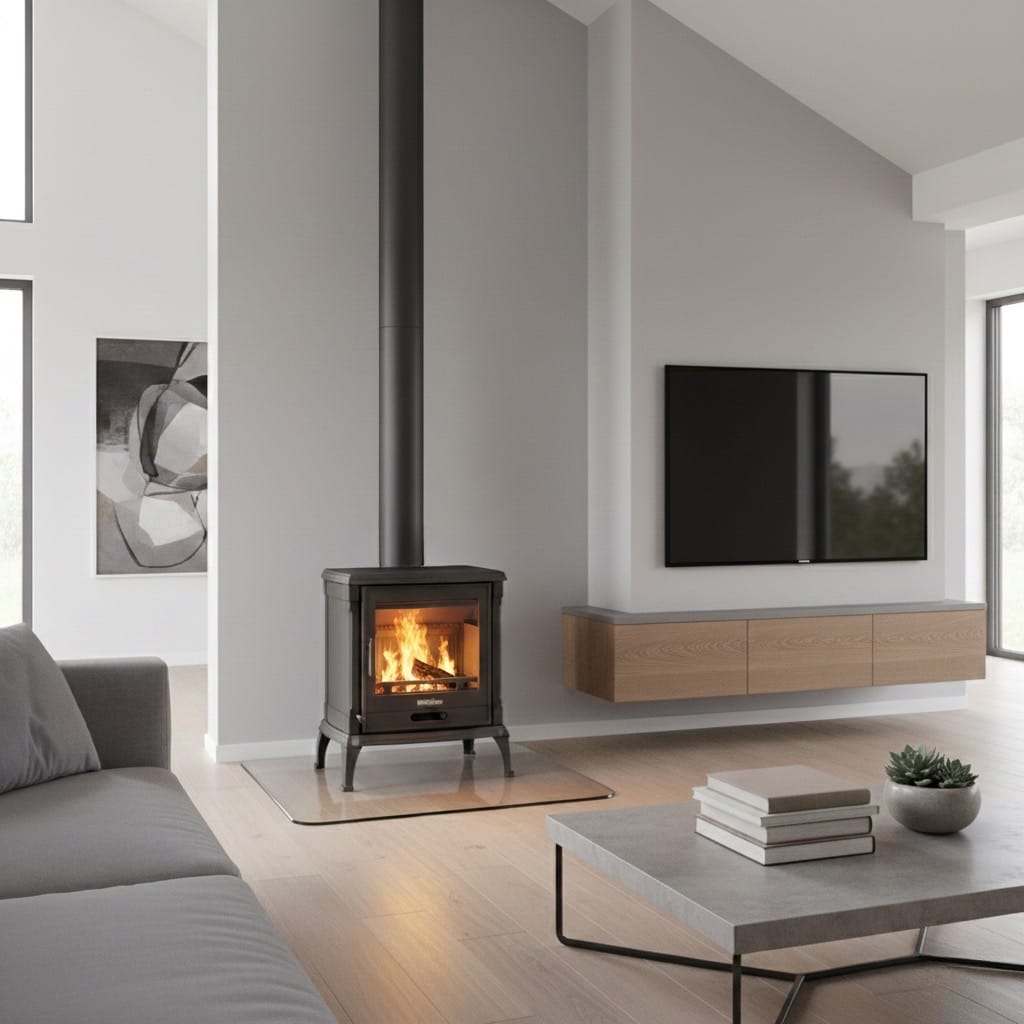

NORDflam IBERIA This is a large NORDflam fireplace stove. Iberia has an adjustable tertiary air supply system to the combustion chamber, which flows into the firebox through inlets located on the rear wall of the chamber and burns up the wood gas released during the combustion process.
Large glazing allows you to enjoy the wonderful vision of fire.
Main parameters:
9 kW
Nominal power
8-12 kW
Heating power range
150 mm
The diameter of the exhaust outlet
68%
Energetic efficiency
0.15%
CO emission at 13% O2
390 ° C
Exhaust gas temperature
90 m
2
Heating capacity (m 2 )
784x656x420 mm
Dimensions
140 kg
Weight
deciduous wood
Type of fuel
cast iron
Material
AND
Energy class
2 years
Warranty
ECODESIGN parameters
58%
Seasonal energy efficiency at 13% O2
118
Organic gaseous compounds (OGC) emissions at 13% O2
45
Particulate matter (PM) emission at 13% O2
130
Emission of nitrogen oxides (NOx) at 13% O2
1875
Carbon monoxide (CO) emission at 13% O2
Additional Features:
Deflector – extends the exhaust path, increasing heat dissipation to the room and improves the efficiency of the insert.
Afterburning of gases – reduces the emission of harmful gases into the environment.
Protective comb – protects the wood against falling out of the insert.
Air curtain – reduces the deposition of soot on the glass.
Double side and rear walls of the hearth – they protect the structure of the insert and increase its parameters.
Grate
Fireproof glass – fireproof glass that can withstand temperatures up to 700oC.
